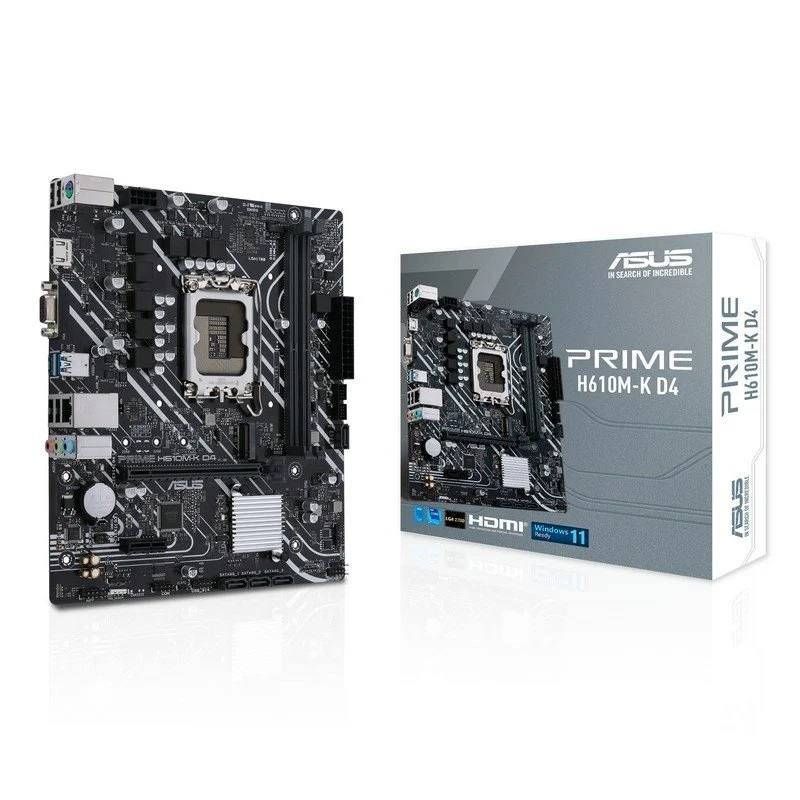

Tarjeta Madre ASUS PRIME H610M-K D4, Socket 1700, DDR4 3200, PCIe 4.0, D-Sub, HDMI, SATA3, Micro ATX
Marca: ASUS
Modelo: PRIME H610M-K D4
El Dorado: no disponible
La Chorrera: no disponible
$102.99 $99.90
Producto Similar
Ver más

Tarjeta Madre ASUS PRIME H610M-K D4, Socket 1700, DDR4 3200, PCIe 4.0, D-Sub, HDMI, SATA3, Micro ATX

Sobre el producto
ASUS Prime H610M-K D4: Placa base micro-ATX Intel® H610 (LGA 1700) con DDR4, PCIe 4.0, ranura M.2, Realtek 1 Gb Ethernet, HDMI®, D-Sub, puertos USB 3.2 Gen. 1, SATA 6 Gbps, conectores COM y RGB

Características:
Zócalo Intel® LGA 1700: Compatible con los procesadores Intel® de 12.ª Gen.
Refrigeración completa: Disipador PCH y Fan Xpert.
Conectividad de alta velocidad: ranura M.2 de 32 Gbps, Ethernet de 1 Gb de Realtek y compatibilidad con USB 3.2 Gen. 1.
5X Protection III: Funciones de seguridad hardware para proteger todo el sistema.

Especificaciones
CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® H610 Chipset

Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics
1 x D-Sub
1 x HDMI® port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
Intel® 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
1 x PCIe 3.0 x1 slot

Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding- Audio Shielding- Audio Shielding- Audio Shielding- Audio Shielding
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI®
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header1 x 10-1 pin System Panel header1 x 10-1 pin System Panel header1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core - SafeSlot Core - SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design- Aluminum heatsink design- Aluminum heatsink design
ASUS Lighting Control
- RGB header

Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility- Performance And Power Saving Utility
 TurboV EVO
 EPU
 DIGI+ VRM DIGI+ VRM
 Fan Xpert
ASUS CPU-ZASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x I/O Shield
1 x M.2 ANCHOR
Installation Media
1 x Support DVD

Documentation
1 x User guide

Operating System
Windows® 11 64-bit, Windows® 10 64-bit

Form Factor
mATX Form Factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
