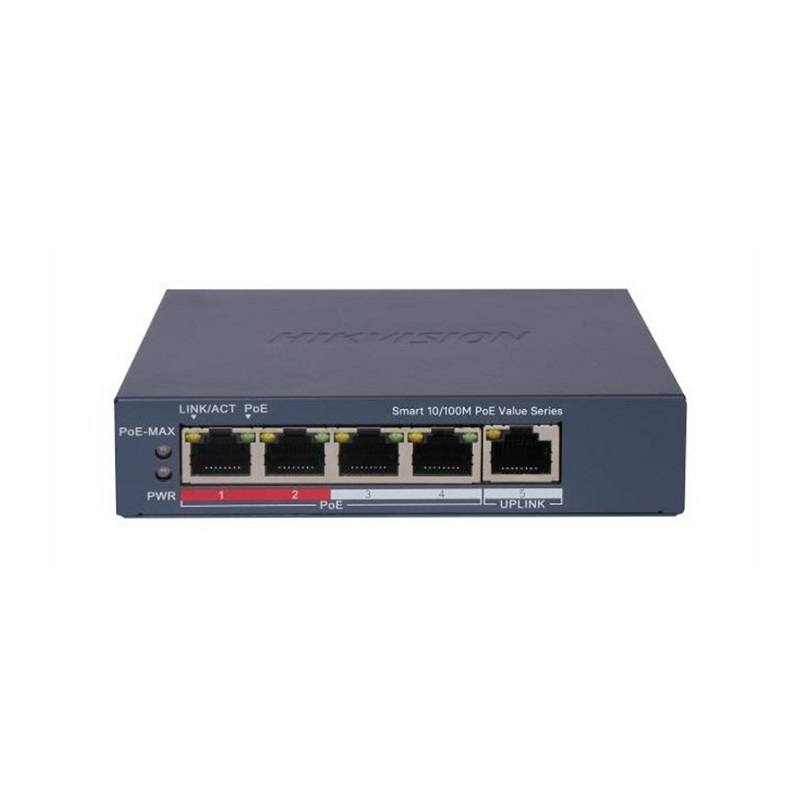

Switch Hikvision DS-3E1105P-EI/M, de 4 Puertos Fast Ethernet 10/100Mbps PoE + 1 Puerto 100Mbps Uplink
Marca: HIKVISION
Modelo: DS-3E1105P-EI/M
El Dorado: disponible
La Chorrera: disponible
$30.99 $30.06
Producto Similar
Ver más

Switch Hikvision DS-3E1105P-EI/M, de 4 Puertos Fast Ethernet 10/100Mbps PoE + 1 Puerto 100Mbps Uplink

Conmutador PoE inteligente Fast Ethernet de 4 puertos
Características:

4 puertos PoE de 10/100 Mbps, 1 puerto RJ45 de 10/100 Mbps
Presupuesto total de energía PoE 45 W
Admite VLAN 802.1Q
Admite el control PoE para detectar y reiniciar las cámaras que no responden
Admite prevención de bucles STP/RSTP
Admite detección de cables para localizar fallas
Transmisión PoE de largo alcance de hasta 300 m
Protección contra sobretensiones de 6 KV

Especificaciones
General

Carcasa: Metal material, fan-free design
Peso neto: 0.26 kg (0.573 lb)
Peso bruto: 0.75 kg (1.65 lb)
Dimensiones (W x H x D): 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
Temperatura de funcionamiento: 0 °C to 40 °C (32 °F to 104 °F)
Temperatura de almacenamiento: -40 °C to 85 °C (-40 °F to 185 °F)
Condiciones de humedad: 5% to 95% (no condensation)
Humedad relativa: 5% to 95% (no condensation)
Fuente de alimentación: 54VDC, 0.92A
Modo de instalación: Desk-Mounted,Wall-Mounted
Max. El consumo de energía: 50 W
Consumo de energía en inactivo: 5 W
Surge Protection: 6 KV

Parámetros de red
Puertos: 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
Tabla de direcciones MAC: 2 K
Capacidad de conmutación: 1.2 Gbps
Tasa de reenvío de paquetes: 0.89 Mpps
Caché interna: 768 Kbits

Fuente de alimentación PoE
PoE Standard: IEEE 802.3af,IEEE 802.3at
Pin de alimentación PoE: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Puerto PoE: PoE: Ports 1 to 4
Max. Puerto de alimentación: 30 W
PoE Power Budget: 45 W

Función de software
Port Isolation
Ports 1 to 4: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

PoE Watchdog: Ports 1 to 4: auto detect and restart the cameras that do not respond.

Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 1 aggregation groups.

Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.

VLAN: VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 32 VLAN.

Largo alcance:
Ports 1 to 4: up to 300 m.
Long range performance may vary depend on camera model or cable condition.

HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.

System Maintenance: Support remote management via Hik-Partner Pro.
VIP Port: Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.

Certificaciones
EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Seguridad: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Química: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
